Stainless steel PTFE oil seal products have the following characteristics:

It has excellent chemical stability, can withstand almost all chemicals. It can be used for the treatment of water, strong acids, strong bases, strong oxidants, gas and gas are sealed. However, due to the difference in lip formula, in order to suit for use requirements, please try to tell us how to use in detail before production.

The coefficient of friction of the PTFE material of the lips is very low, the coefficient of friction is very low, only 0.02, and the rubber is 1/40, which is particularly suitable for oil-free work in the oil state.

Reactivated after long-term shutdown, it will immediately have low friction characteristics.
A single lip can withstand 1.5Mpa, and a double lip can withstand a greater pressure of 3Mpa. Especially suitable for high-speed rotation. The rubber sealing ring is only 0.03 Mpa;

In application, the linear speed can reach 30m / s; it can work in the temperature range of -120 ℃ ~ 220 ℃.
During processing, the PTFE stainless steel oil seal lip draw into a trumpet shape. Since the PTFE lip has the ability of memory contraction after drawing, friction will occur during work.

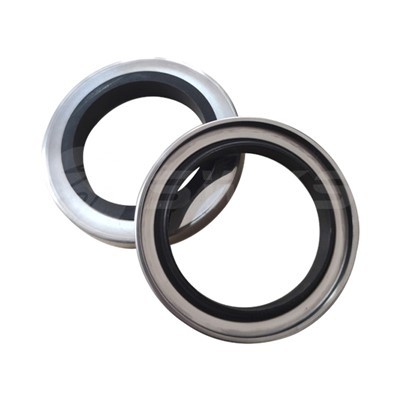

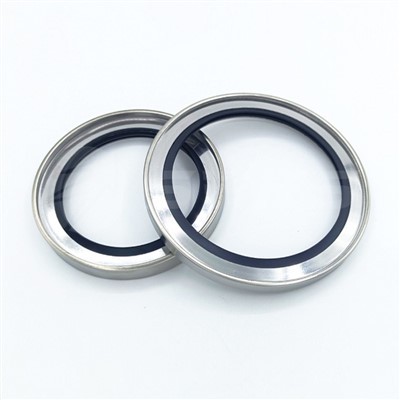

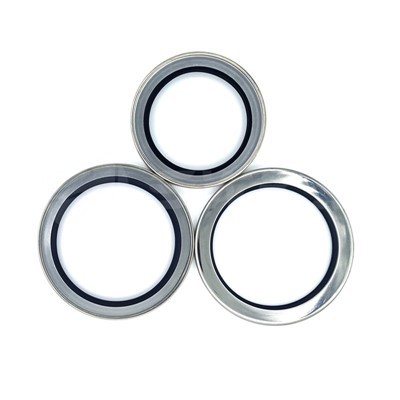

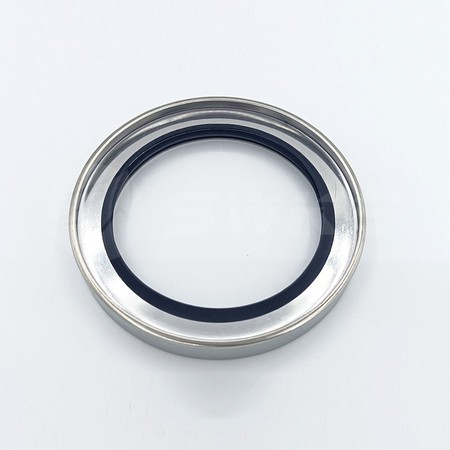

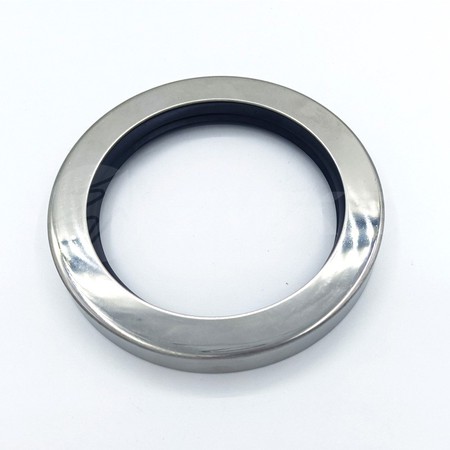

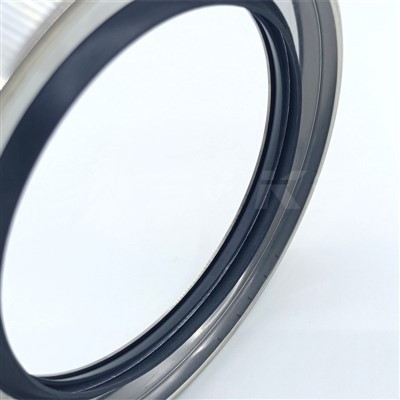

Double Lips PTFE Stainless Steel Oil Seals

PTFE Oil Seals

Stainless Steel Shaft Seal

Scope of application Cylinders, automobiles, pumps, doors and windows, electrical appliances, other.
nature: Corrosion resistance, high temperature resistance, wear resistance, other

Rotary seals and shaft seals are used in components with oscillating or rotating parts to keep lubrication fluids in while preventing ingress of mud and water. Spring Loaded Radial Lip Oil Seals
